Precision 6061 T6 Aluminum Square Tube 30×30×2.0mm

Basic Info

Model No.303020

BrandDE FENG

Additional Info

TransportationOcean,Land,Air

Place of OriginChina

CertificateCE

PortShenZhen

Product Description

Precision 6061-T6 Aluminum Square Tube 30×30×2.0mm
Certified to ASTM B221/EN 573-3 standards, our 30×30×2.0mm aluminum square tube delivers 310MPa tensile strength and 276MPa yield strength at 2.7g/cm³ density - achieving 60% weight reduction versus steel equivalents. The T6 heat-treated 6061 alloy features optimized Mg (0.8-1.2%) and Si (0.4-0.8%) composition, forming Mg₂Si precipitates that ensure structural stability across -50°C to 150°C operating temperatures.

Engineered for Demanding Environments
With 10-15 Webster hardness and ≥8% elongation, this profile withstands high-impact scenarios while maintaining machining flexibility. The chromium-enhanced formula (Cr 0.04-0.35%) passes 168-hour salt spray tests (ASTM B117), making it ideal for coastal installations and high-humidity industrial applications. Precision-extruded walls (2.0mm±0.1mm) ensure uniform stress distribution in load-bearing frameworks.

custom aluminum extrusions Solutions
We provide:
• Precision cutting (custom lengths with ±0.1mm tolerance)
• Anodizing options (MIL-A-8625 compliant)
• Technical drawings for CNC integration
• Batch-specific material certifications

Core parameters

Material: 6061-T6 aluminum alloy (ASTM B221/EN 573-3 certified)

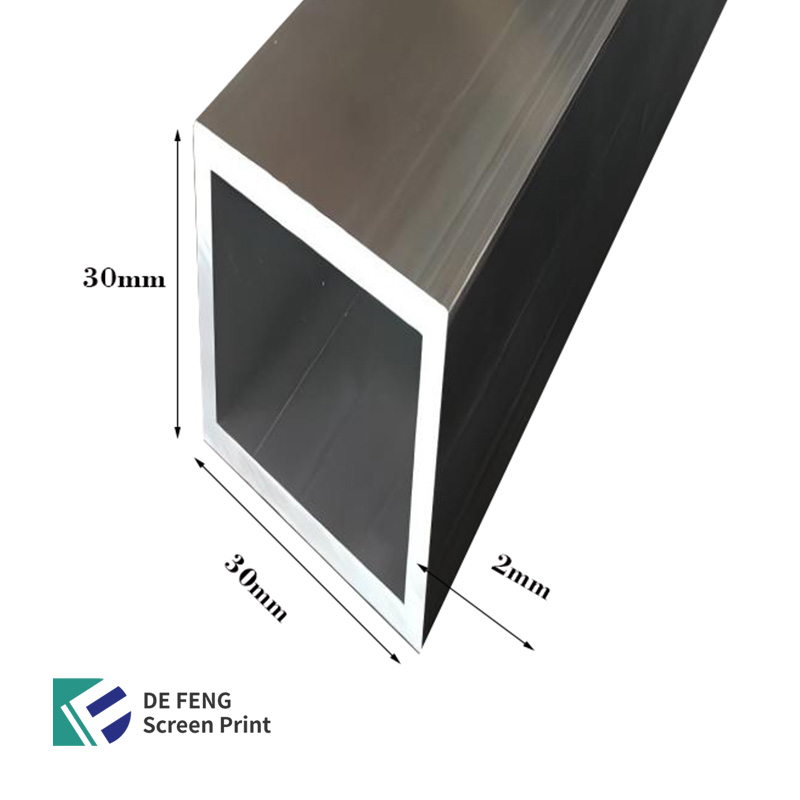

Size: 30mm × 30mm × 2.0mm (wall thickness tolerance ± 0.1mm)

Strength: Tensile strength ≥ 310MPa | Yield strength ≥ 276MPa | Hardness (Vickers hardness) 10-15, Density: 2.7g/cm ³ (60% lighter than steel)

Salt spray test: 168 hours without corrosion (ASTM B117 standard)



Description:

Chemical composition (typical value, wt%)

Aluminum (Al): Excess

Magnesium (Mg): 0.8-1.2%

Silicon (Si): 0.4-0.8%

Copper (Cu): 0.15-0.4%

Chromium (Cr): 0.04-0.35%

Iron (Fe): ≤ 0.7%

Manganese (Mn): ≤ 0.15%

Zinc (Zn): ≤ 0.25%

Titanium (Ti): ≤ 0.15%



Analysis of Technical Advantages

1. Gold alloy formula (chemical composition)

Magnesium (Mg) and silicon (Si): form a strengthening phase Mg ₂ Si, endowing high strength and thermal stability.

Chromium (Cr): enhances stress corrosion resistance and extends outdoor service life.

Low impurity control: Iron (Fe) ≤ 0.7%, copper (Cu) ≤ 0.4%, ensuring homogeneity and defect free.



2. Hardcore performance data (T6 state)

Tensile strength: ≥ 310 MPa (equivalent to 70% of 45 # steel, with only one-third of its weight)

Yield strength: ≥ 276 MPa (strong deformation resistance and more stable support structure)

Elongation rate: ≥ 8% (moderate toughness, avoiding brittle fracture)

Hardness: 95 HB (wear-resistant and scratch resistant, suitable for frequent assembly scenarios)



3. Environmental adaptability

Temperature range:- Stable performance from 50 ° C to 150 ° C, with no risk of low-temperature embrittlement.

Corrosion resistance level: Passed the 168 hour neutral salt spray test (ASTM B117), suitable for coastal/high humidity areas




Aluminum T Extrusion

Product Categories : Aluminum Frames > Aluminium Profile

Product Images

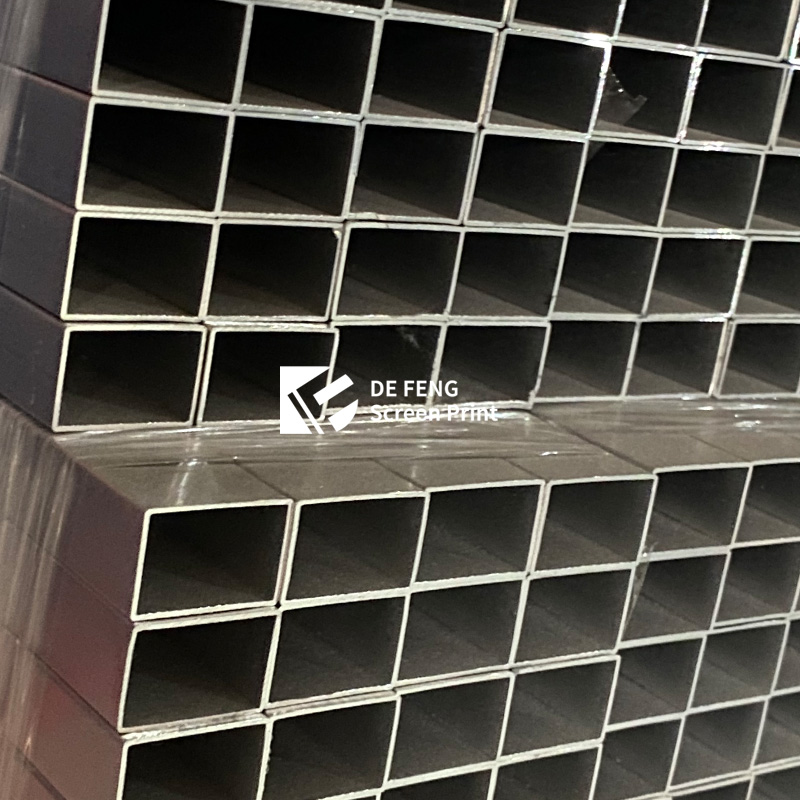

  • Precision 6061 T6 Aluminum Square Tube 30×30×2.0mm

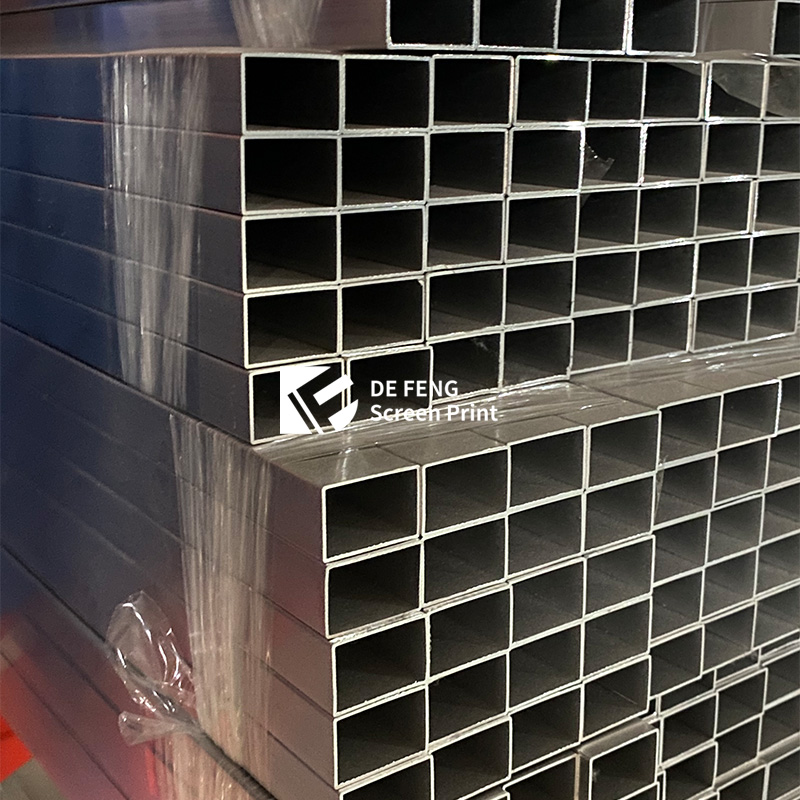

  • Precision 6061 T6 Aluminum Square Tube 30×30×2.0mm

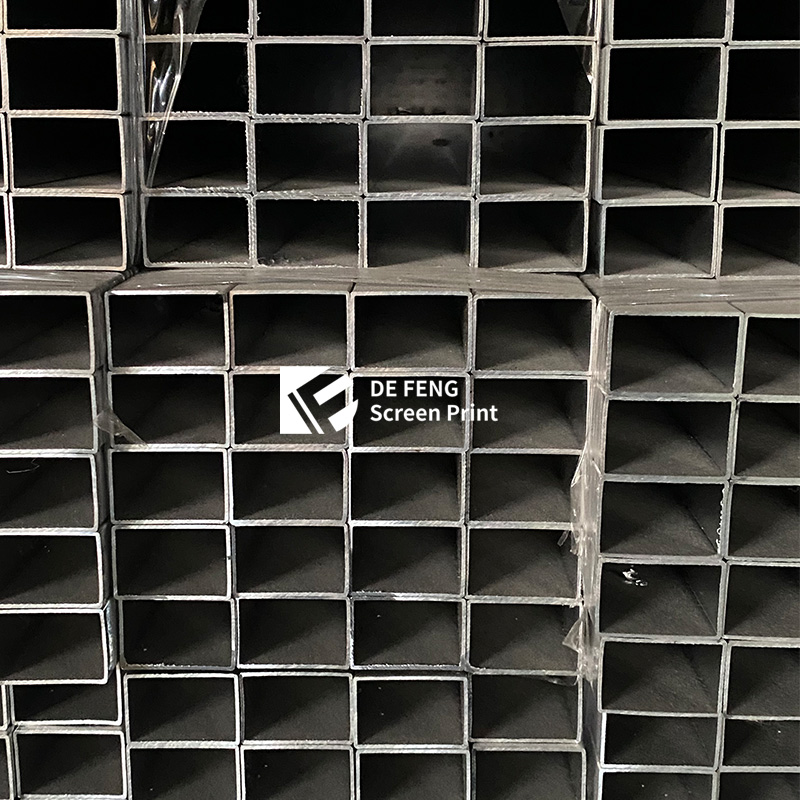

  • Precision 6061 T6 Aluminum Square Tube 30×30×2.0mm
  • Precision 6061 T6 Aluminum Square Tube 30×30×2.0mm

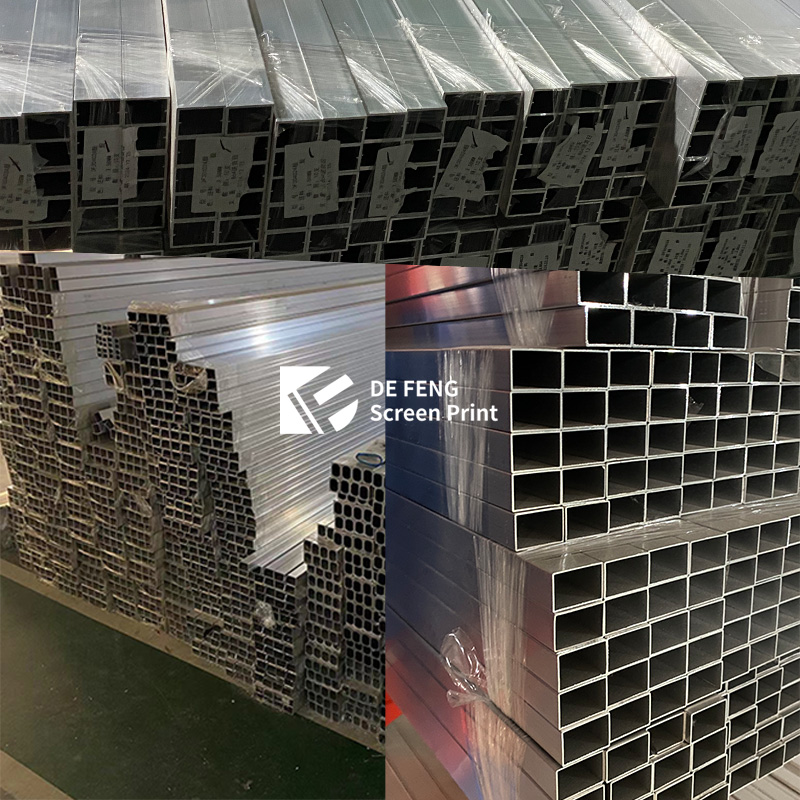

  • Precision 6061 T6 Aluminum Square Tube 30×30×2.0mm
