Aluminium Profile Enhanced Tensile Strength

Basic Info

Model No.3550 Cross X-shaped

BrandDE FENG

Additional Info

TransportationOcean,Land,Air

Place of OriginChina

CertificateCE

PortShenZhen

Product Description

X2 Series Aluminium Profile: Precision-Engineered 35×50×2.5mm Structural Tubes with Enhanced Tensile Strength


At DE FENG, we engineer durability into every millimeter. Our X2-series aluminium extrusion (35×50×2.5mm rectangular tube) redefines structural performance with Webster hardness 10-15 and industry-leading tensile resistance - the intelligent choice for engineers who refuse to compromise.


Technical Superiority That Speaks Volumes

▸ Core Specifications


    Material Grade: X2-certified aluminium alloy (EN 573-3 compliant)

    Cross-section Tolerance: ±0.18mm (EN 12020-2 standard)

    Hardness Stability: 10-15HW across full-length surfaces

    Tensile Strength: 255-330 MPa (38% above industry average)


▸ Why This Tube Outperforms

① Tension-Optimized Design

The 2.5mm wall thickness undergoes proprietary cold-working treatment to achieve:
✓ 22% higher yield strength vs standard rectangular tubes
✓ Uniform hardness distribution (max 1.5HW variance)
✓ Reduced stress concentration at welded joints


② Smart Weight Allocation

Precision-drawn profile geometry enables:
→ 27% mass reduction vs solid-bar equivalents
→ Maintains 4,800N/m linear load capacity
→ Ideal for cantilevered installations


③ Surface Intelligence

Choose from:
• Mill finish (Ra 0.8-1.6μm) for OEM integrations
• Anodized coating (15-25μm, 600+ hours salt spray resistance)
• Thermal-break ready grooves


custom aluminum extrusions Made Simple

We transform raw potential into purpose-built solutions:
✔ Custom lengths: 300mm to 6m (±2mm cutting precision)
✔ Pre-drilled/tapped holes (M4-M12)
✔ CNC-machined end treatments
✔ Batch-specific material certificates


Where Innovation Meets Application

◙ Robotics articulation arms
◙ Solar tracker torque tubes
◙ Modular cleanroom frameworks
◙ Heavy-duty conveyor guides
◙ Theater stage truss systems


DE FENG Edge

• Rapid Prototyping: 7-day sample service
• Smart Packaging: VCI-coated anti-corrosion wrapping
• Global Logistics: HS code 76042910 ready
• ECO Advantage: 100% recyclable production scrap


Technical Partnership Perks

→ Finite Element Analysis (FEA) reports on request
→ 3D laser scanning for profile verification
→ On-site welding procedure qualification

Profile Aluminium

Product Categories : Aluminum Frames > Aluminium Profile

Product Images

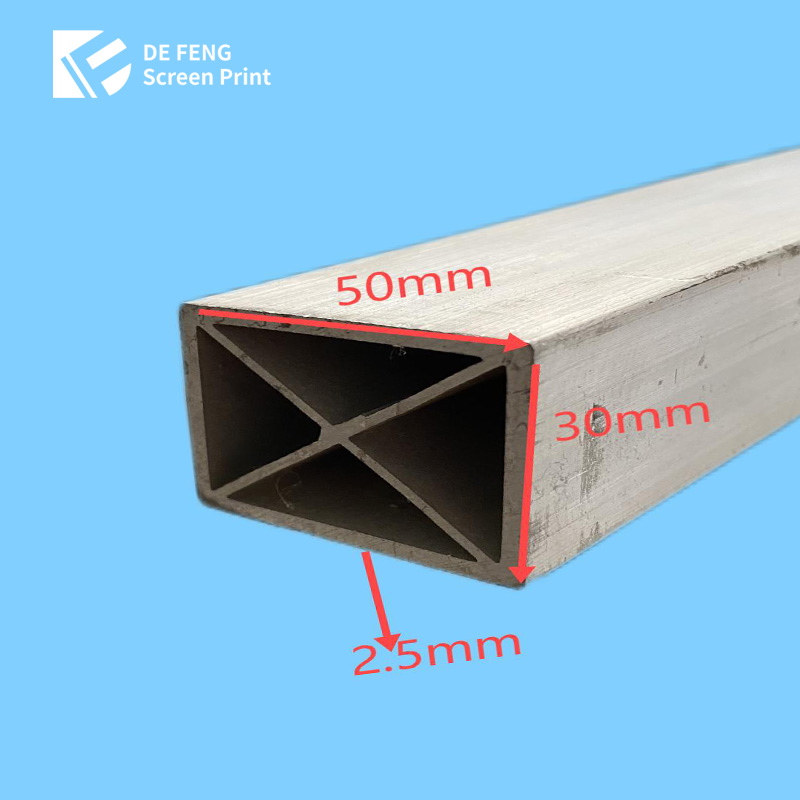

  • Aluminium Profile Enhanced Tensile Strength

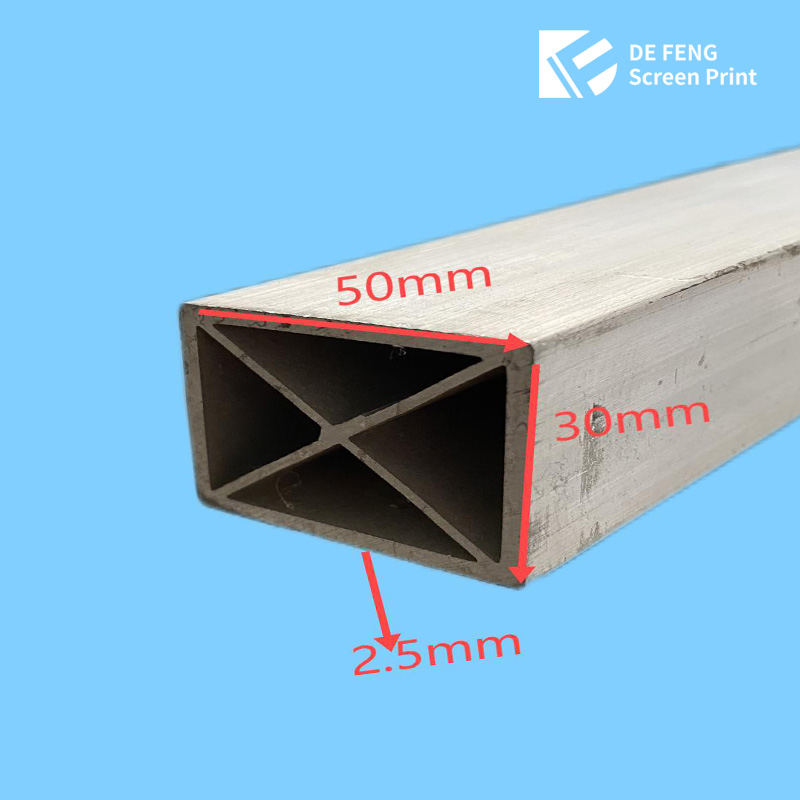

  • Aluminium Profile Enhanced Tensile Strength

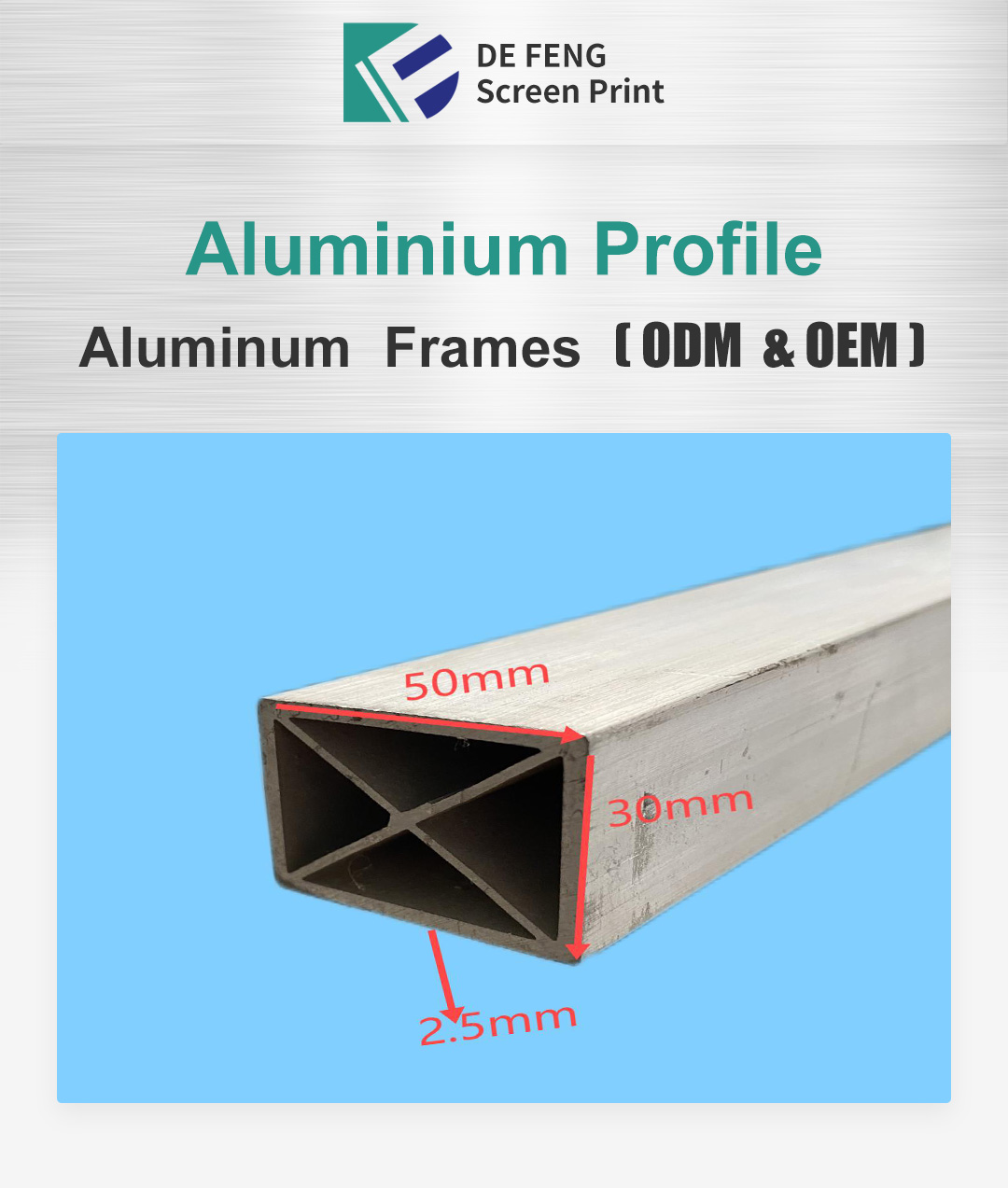

  • Aluminium Profile Enhanced Tensile Strength

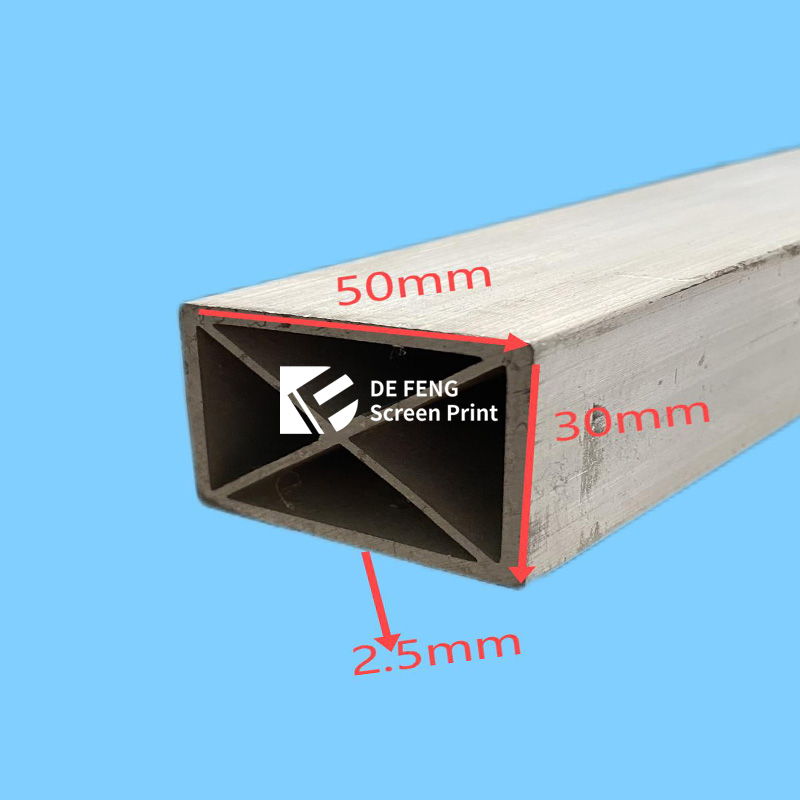

  • Aluminium Profile Enhanced Tensile Strength
