Aluminium Profile for Screen Printing

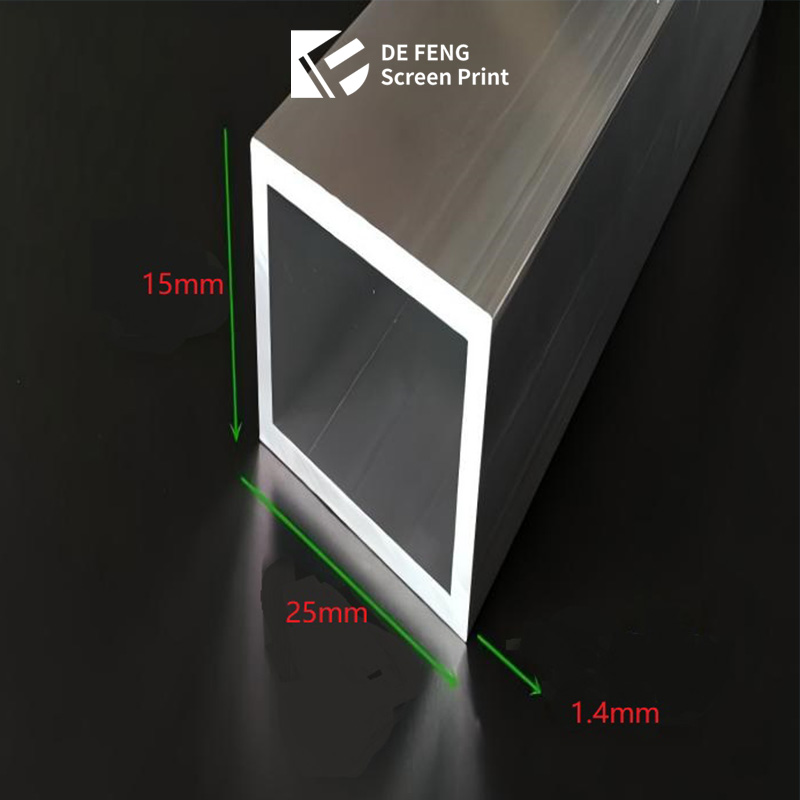

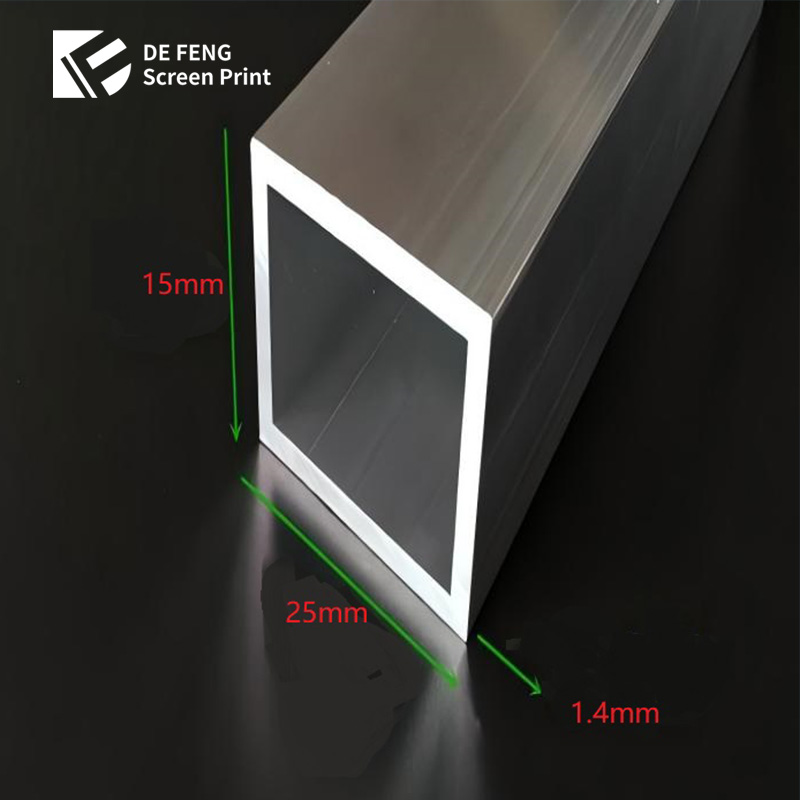

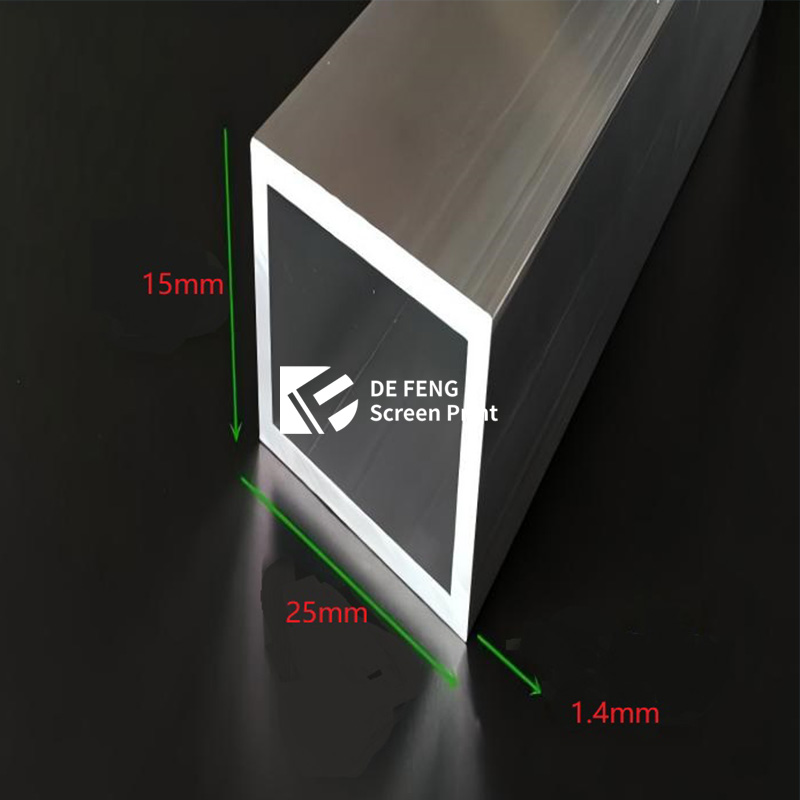

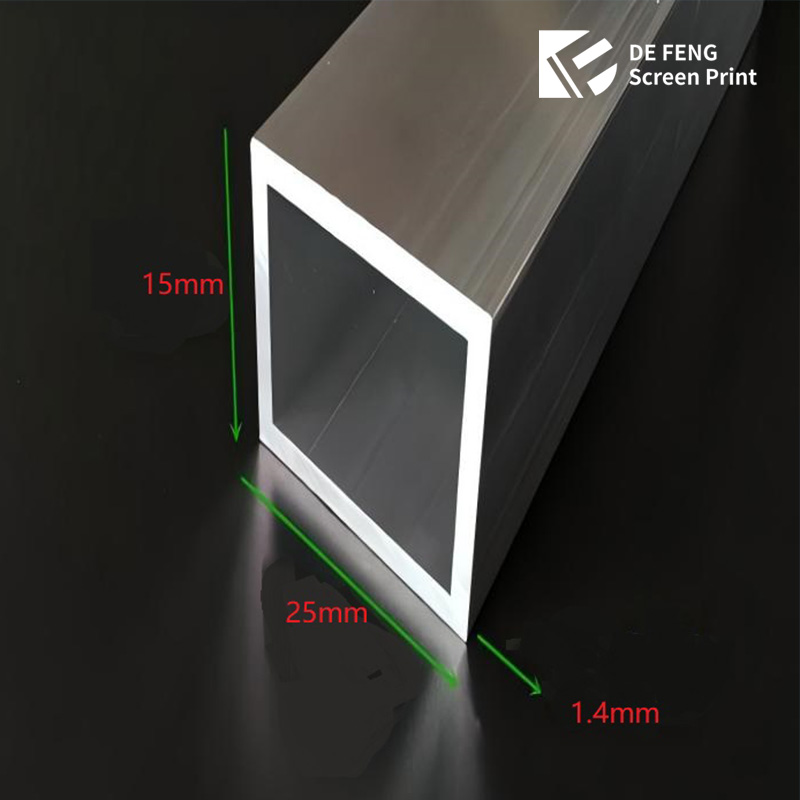

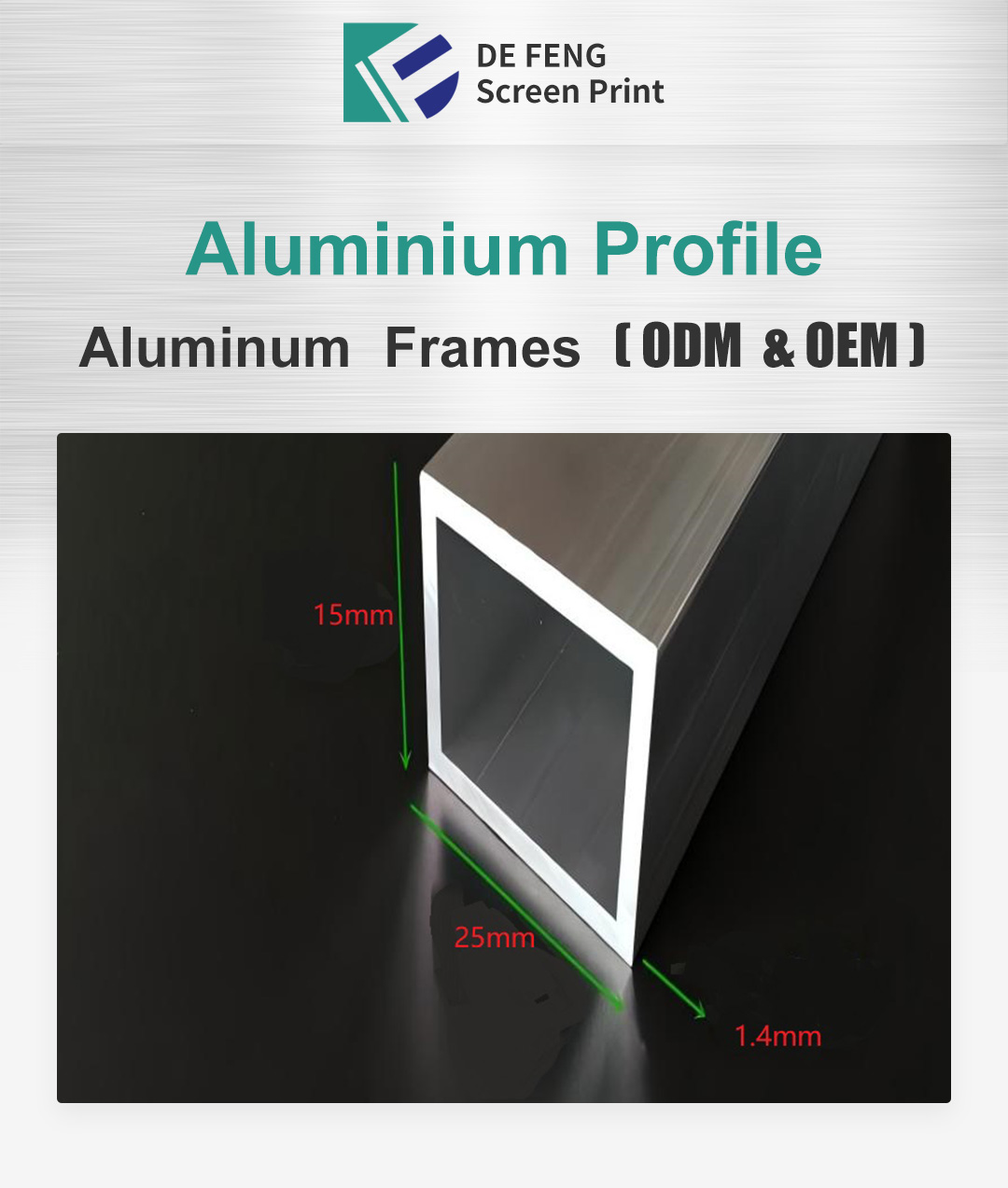

A0 Series Aluminium Profile: Precision 15×25×1.4mm Screen Printing Frame Extrusions

When millimeter precision meets grams-level optimization - our A0-series aluminum channel extrusions redefine lightweight screen printing solutions. Specifically engineered for 40cm-scale printing frames, these 15×25×1.4mm profiles combine Webster hardness 10-15 with intelligent mass distribution for flawless squeegee control.

Technical Specifications That Deliver
◆ Material Essentials

• Alloy Type: A0-grade aluminum (EN AW-6060 T66 equivalent)

• Profile Accuracy: ±0.12mm linear tolerance (ISO 2768-f)

• Weight Efficiency: 0.38kg/m - 45% lighter than standard printing frames

• Surface Flatness: ≤0.15mm/m warp resistance

Engineered for Screen Printing Excellence
❶ Lightweight Precision
The 1.4mm optimized wall thickness achieves:
✓ 22% vibration reduction during high-speed printing
✓ 0.03mm/m thermal expansion coefficient (20-50℃)
✓ Compatible with 3-8mm tensioning bolts

❷ Frame Rigidity Redefined
Dual-chamber design enhances:
→ 18% higher torsional stiffness vs solid profiles
→ Integrated 45° corner key slots
→ Pre-drilled M5/M6 thread-ready positions

❸ Surface Perfection
Choose your finishing:
• Mill finish (Ra 0.4μm) for direct emulsion coating
• Clear anodizing (8-12μm, 300hrs salt spray resistance)
• Conductive oxidation treatment (≤10 surface resistance)

Custom aluminum extrusion profiles Service
Tailored solutions for specialty printing:
✔ Custom cutting: 200mm-2400mm (±0.5mm accuracy)
✔ Pre-installed corner brackets (304SS/ABS options)
✔ Laser-etched scale markings (1mm increments)
✔ EMI-shielding compatible versions

Application Scenarios
▣ PCB screen printing templates
▣ Textile label printing frames
▣ Glass instrument dial production
▣ Ceramic decal transfer systems
▣ Medical device marking jigs

Competitive Edges
• Rapid Delivery: 72hr express service for ≤2m frames
• Smart Packaging: Anti-static VCI film wrapping
• ECO Compliance: 85% post-industrial recycled content
• MOQ Advantage: 50-meter trial orders available

Technical Support
→ Frame tension simulation reports
→ Squeegee pressure distribution analysis
→ On-site frame assembly training
