Aluminium U Profile for Screen Printing

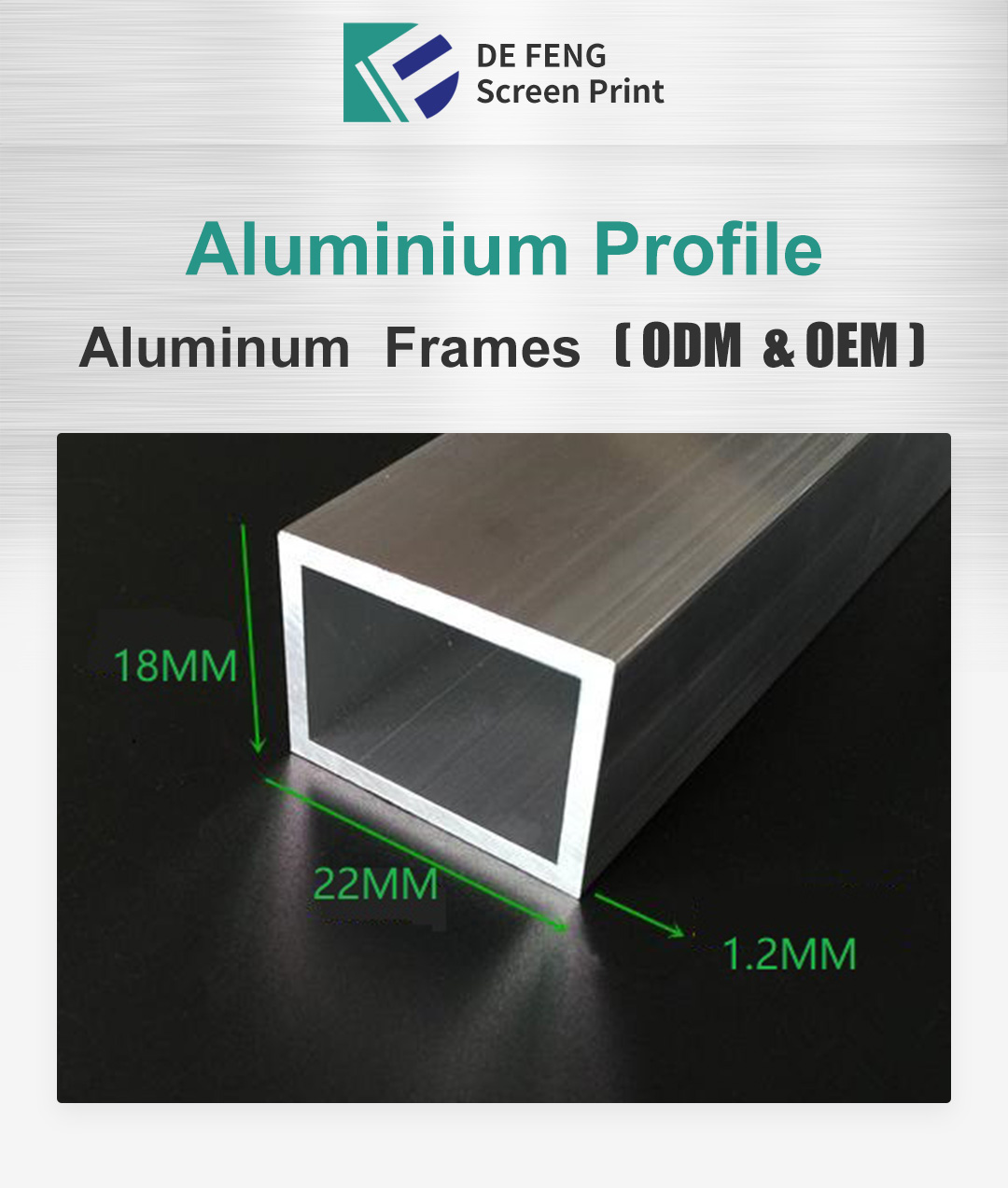

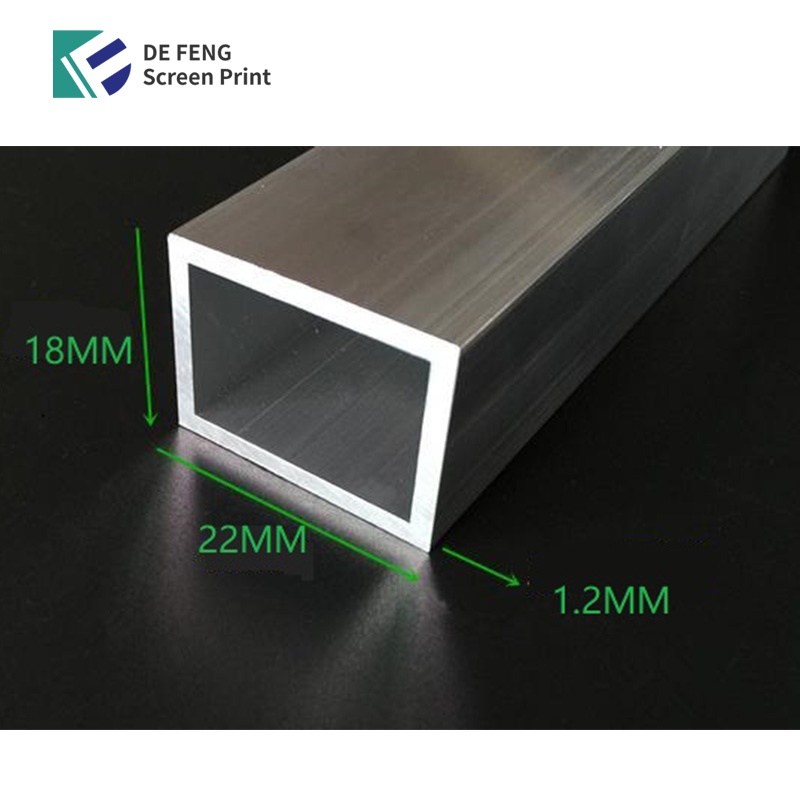

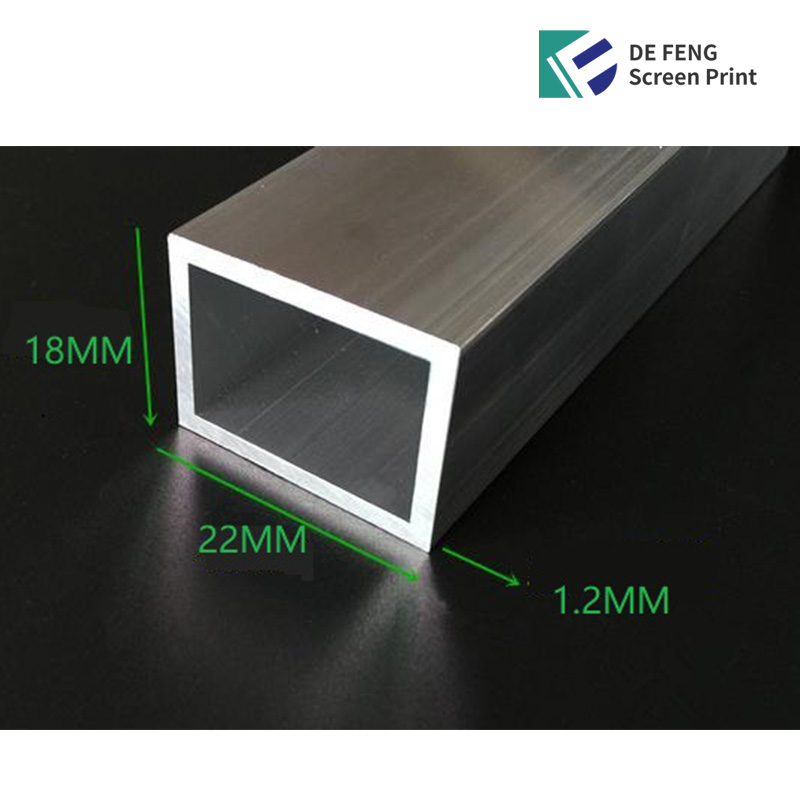

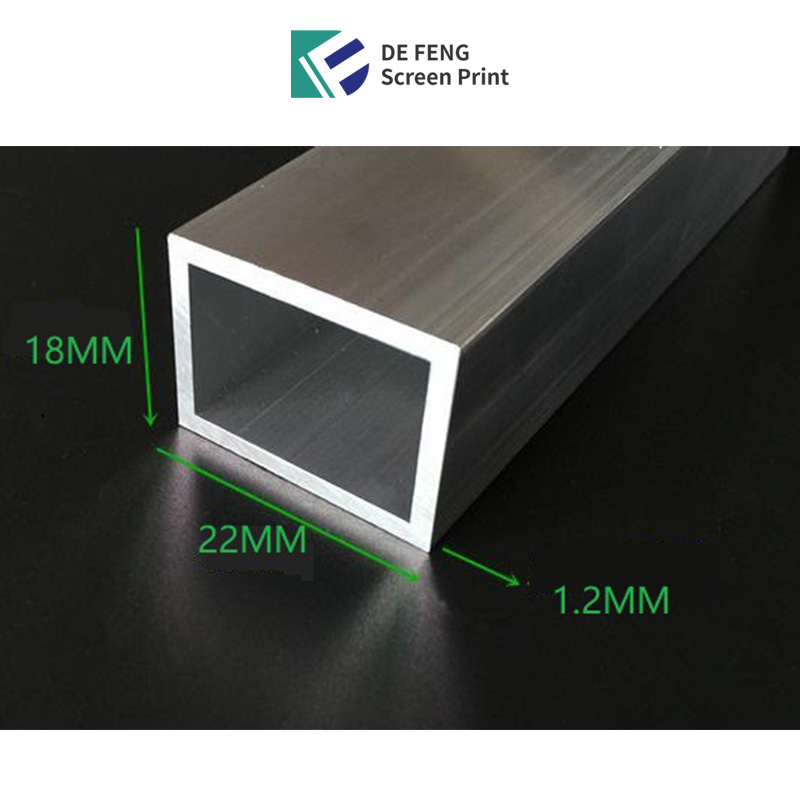

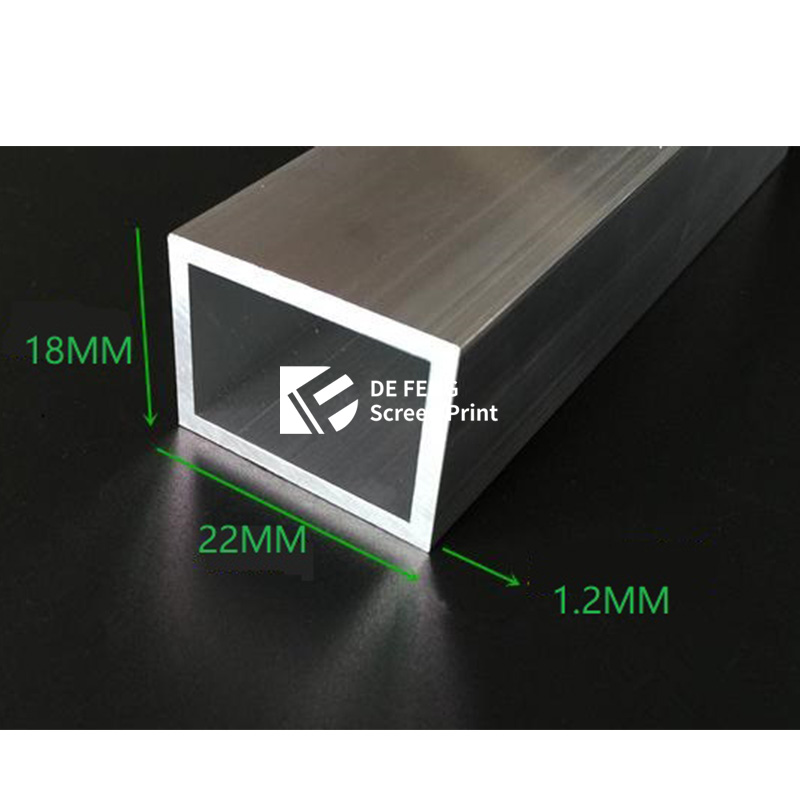

A1 Series aluminium u profile: Ultra-Light 18×22×1.2mm Screen Printing Frame Extrusions

Where precision meets featherweight performance - our A1-series aluminium U profiles set new benchmarks for sub-40cm screen printing frames. Engineered with 18×22×1.2mm micro-channel geometry and Webster hardness 10-15, these extrusions deliver surgical-grade stability at just 0.28kg/m.

Technical Specifications
◆ Material Composition

• Alloy Designation: A1-grade (EN AW-6063 T5 equivalent)

• Profile Straightness: ≤0.1mm/300mm (ISO 8578 Class B)

• Weight-to-Stiffness Ratio: 37% better than conventional frames

• Thermal Stability: 0.025mm/℃ expansion coefficient

Engineering Innovations
❶ Micro-Channel Technology
Precision-drawn U-profile architecture achieves:
✓ 25% vibration damping vs standard L-profiles
✓ Integrated 1.5mm registration notches
✓ 0.5mm emulsion clearance channels

❷ Edge-Perfect Design
Radius-optimized corners (R0.4mm) ensure:
→ 18% reduced squeegee wear
→ Seamless corner key integration (4mm/6mm options)
→ EMI-shielding ready grooves

❸ Surface Intelligence
Multiple functional finishes:
• Hardcoat anodizing (10-15μm, HV 400+)
• PTFE-impregnated coating (≤0.12 friction coefficient)
• ESD-safe black oxidation (10⁶-10⁹ surface resistance)

Custom Aluminium Channel Extrusions Service
From prototype to production:
✔ Precision cutting: 150mm-2000mm (±0.3mm tolerance)
✔ Pre-mounted tension indicators (0-50N/cm scale)
✔ Laser-engraved fiducial markers
✔ RFID tag embedding options

Industry-Specific Applications
▣ High-density PCB stencil frames
▣ Cosmetic packaging foil printing
▣ MEMS device alignment jigs
▣ Currency anti-counterfeit grids
▣ Biomedical label production

Competitive Advantages
• Micro-Frame Expertise: 200+ custom screen printing projects
• Smart Logistics: Vacuum-sealed moisture barrier packaging
• Sustainability: 92% closed-loop water recycling
• MOQ Flexibility: 30-meter sample orders

Technical Partnership Benefits
→ Frame tension mapping services
→ Squeegee angle optimization reports
→ On-demand mesh adhesion testing
