Custom Aluminum Square Tube 30×40×2.2mm

Basic Info

Model No.304022

BrandDE FENG

Additional Info

TransportationOcean,Land,Air

Place of OriginChina

CertificateCE

PortShenZhen

Product Description

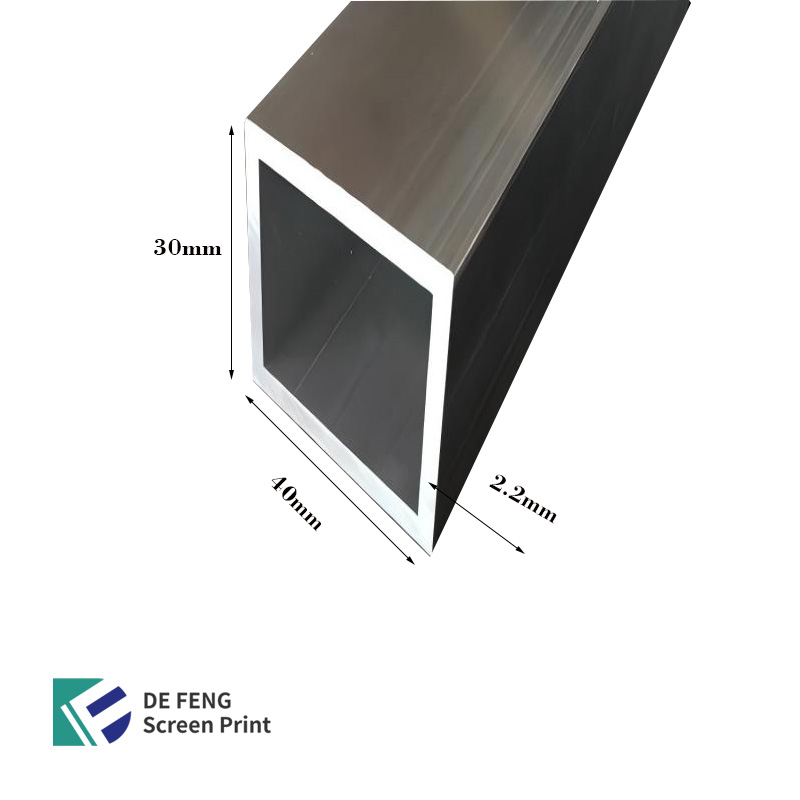

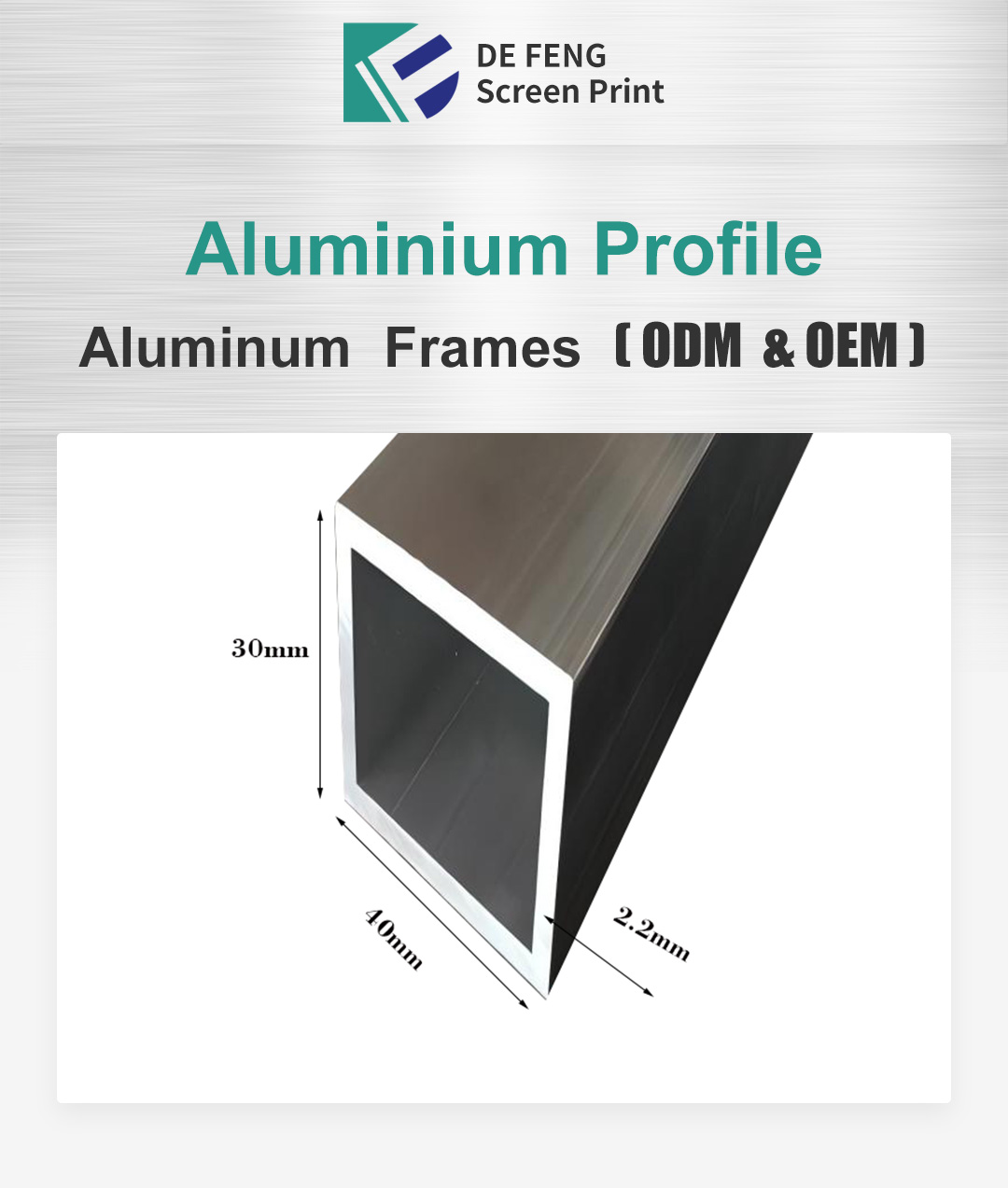

6061-T6 Precision Aluminum Square Tube 30×40×2.2mm | Industrial-Grade Structural Profile
Certified to GB/T 3191 standards, this 30×40×2.2mm aluminum profile achieves ≥180MPa tensile strength with 14% elongation, combining lightweight efficiency (2.73g/cm³) and exceptional load-bearing capacity. The T6 heat-treated 6061 alloy features Mg₂Si reinforcement phases (Mg 1.0%, Si 0.6%) that enhance stress corrosion resistance by 30% versus standard alloys. Precision thermal extrusion ensures ±0.2mm dimensional accuracy and ≤5% wall thickness variation, ideal for high-tolerance mechanical frameworks.

Advanced Manufacturing & Protection
With 10-15 Webster hardness and ≥10μm anodized coatings (48hr salt spray compliant), the profile withstands harsh outdoor environments. Choose between brushed or anodized finishes (silver/black) for enhanced aesthetics and protection. Our AI-controlled extrusion process delivers Ra≤0.8μm inner surface smoothness, eliminating burrs for precision assembly with M6/M8 fasteners.

custom aluminum extrusions Solutions
• 24/7 laser cutting service (±0.15mm accuracy)
• On-demand bending (R≥3t radius)
• 100-ton ready stock with 48hr global shipping
• GD&T-compliant technical drawings


V Slot Aluminium Extrusion

Product Categories : Aluminum Frames > Aluminium Profile

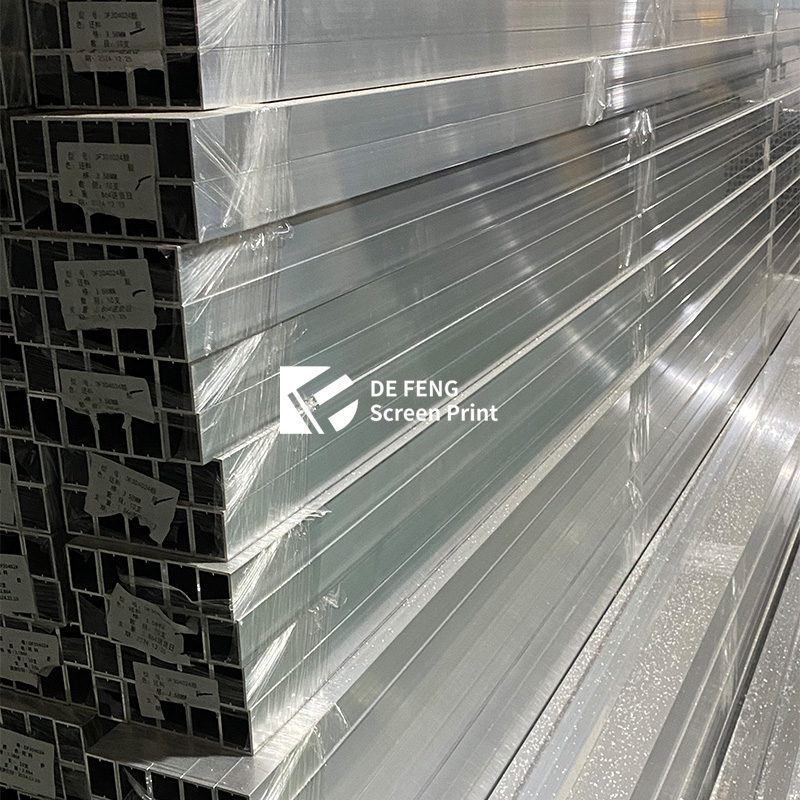

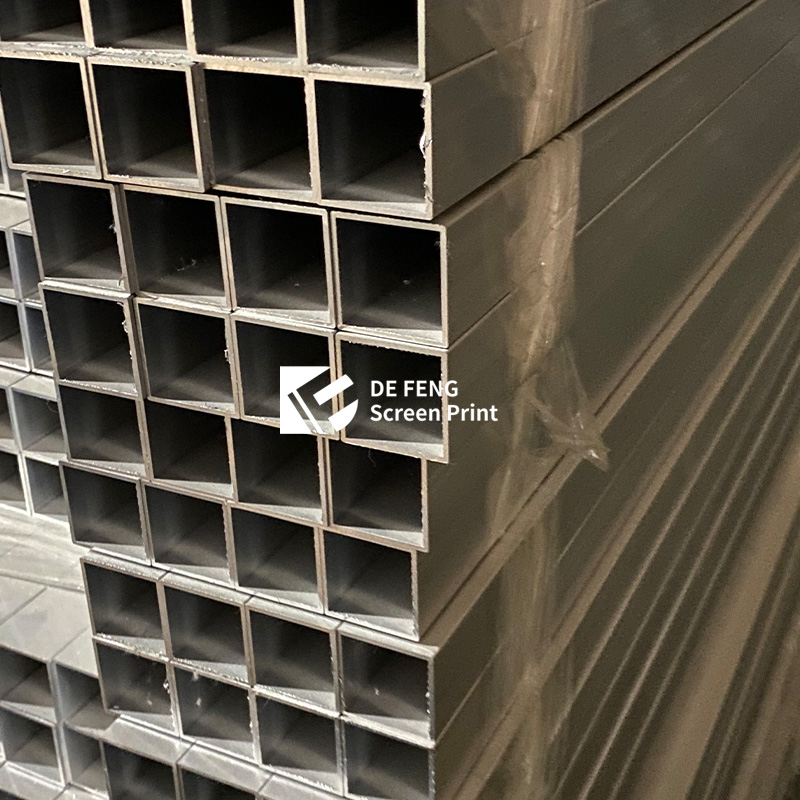

Product Images
  • Custom Aluminum Square Tube 30×40×2.2mm
  • Custom Aluminum Square Tube 30×40×2.2mm
  • Custom Aluminum Square Tube 30×40×2.2mm
  • Custom Aluminum Square Tube 30×40×2.2mm
