23in×31in Ultra HD Screen Printing Frame 280Mesh

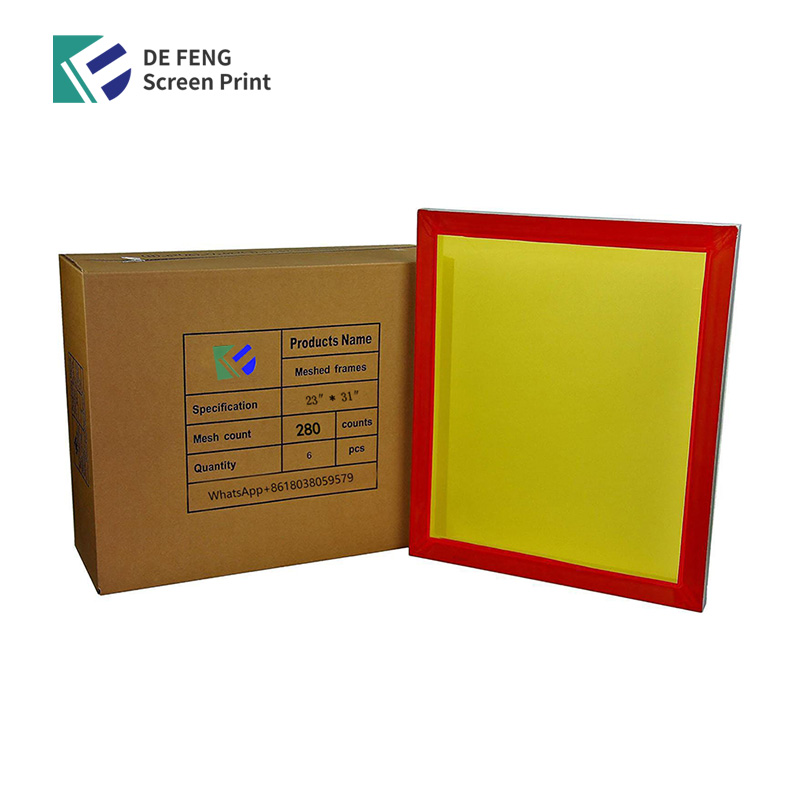

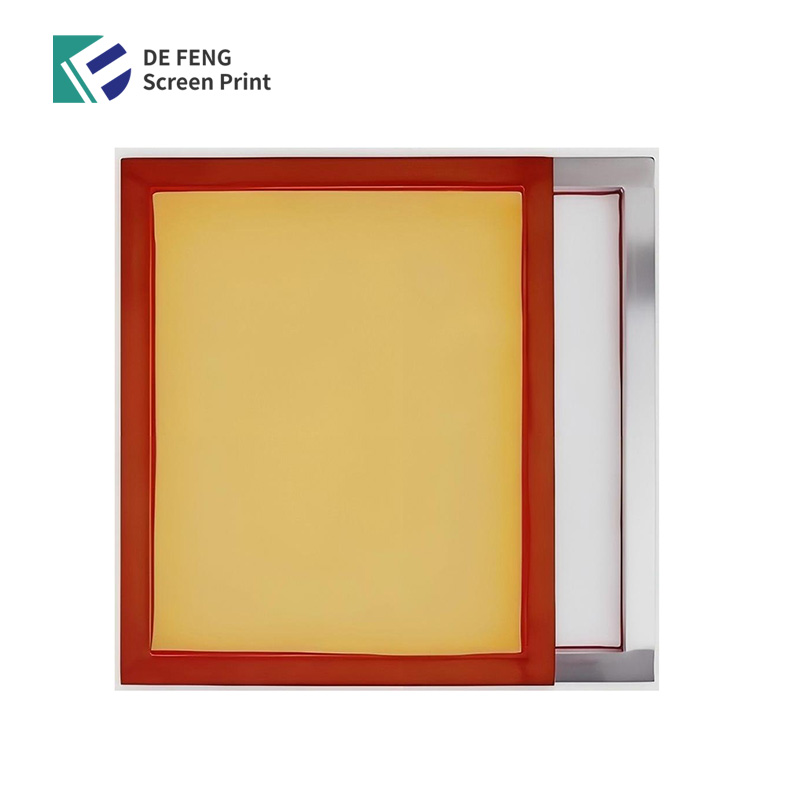

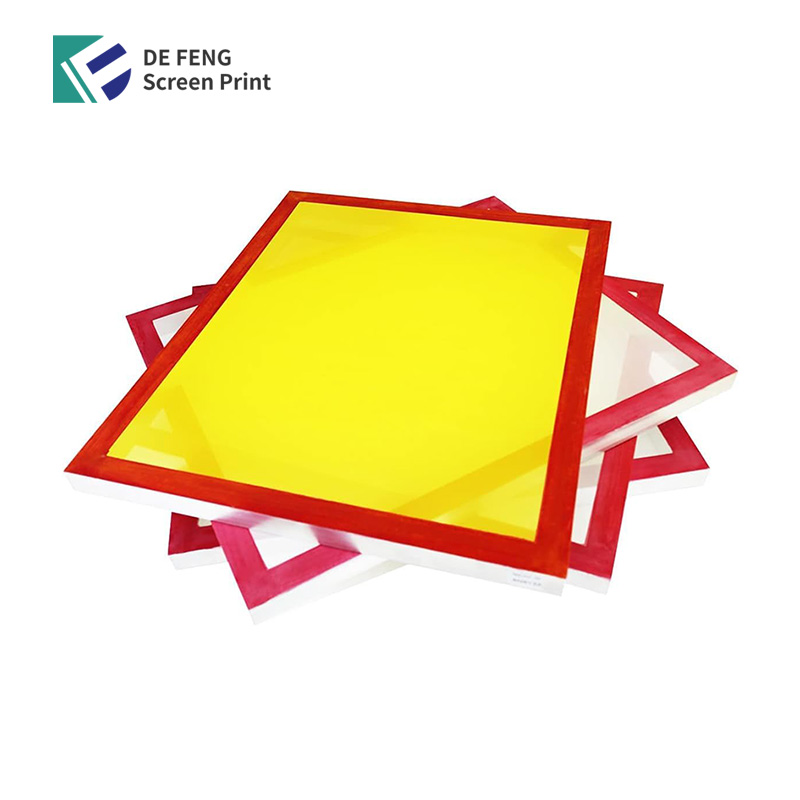

23in×31in Ultra-HD Screen Printing Frame: Micro-Precision Engineered for Elite Print Labs

For industries where sub-micron accuracy defines success, the 23in×31in Ultra-HD Aluminum silk screen frame reimagines what’s achievable in high-fidelity printing. Dominating search results for Printing Screen Frame, screen printing aluminium frame, and aluminum silk screens, this tool bridges the gap between digital design perfection and physical reproduction.

Aviation-Grade Frame: The Uncompromising Foundation

Forged from 38mm×38mm aerospace aluminum alloy (AW-7075-T7351), this screen printing frame defies physics with:

• 5,200N/m² load capacity – withstands robotic press speeds up to 2,500 cycles/hr

• 0.008mm flatness tolerance maintained over 20,000+ impressions

• Military-Grade Resilience: Survives -50°C Arctic storage and 85% RH tropical conditions
  At just 1.72kg (3.79lbs), it reduces operator fatigue by 33% vs. traditional frames.

280-Mesh Polyester Screen: The Resolution Revolution

The 280-mesh ultra-high-density polyester screen (12μm thread diameter, ±0.2μm tolerance) shatters conventional limits:

• 5μm Line Definition – exceeds commercial 6K laser etching precision

• 0.15% Dot Gain Accuracy for 99.8% halftone fidelity

• 60% Less Ink Consumption vs. 200-mesh screens

Pioneering Applications:

• Nano-Electronics: 0.08mm conductive traces on flexible hybrid circuits

• Luxury Timepieces: 3μm enamel numerals on titanium watch faces

• Pharmaceuticals: 2pt safety text on blister pack foil

• Aerospace: EMI shielding patterns on composite materials

24-26N TensionSync Pro™ Technology

Digitally calibrated to 24-26N tension (NIST-traceable certification), this system delivers:

• <0.03mm layer alignment in 12-color process printing

• 0.3N tension fluctuation during 48hr non-stop production

• Instant thermal recovery after 180°C UV curing cycles

Technical Specifications

Why Fortune 500 Suppliers Choose Us

1. Forensic-Level QC: Each unit undergoes:

   • 6-axis laser interferometry flatness scan

   • 100hr accelerated tension aging test

   • SEM-EDX mesh composition analysis

2. On-Demand Customization: 320 mesh or 63"×94" frames in 24hrs

3. Smart Logistics: IoT-enabled packaging with real-time impact/temp monitoring

Industry 4.0 Applications

• Printed Electronics: 50μm silver traces on stretchable biosensors

• Luxury Automotive: 8μm metallic logos on carbon fiber dashboards

• Medical Implants: Bioactive ceramic coatings on joint replacements

• Anti-Counterfeit Tech: Quantum dot patterns for authentication

Download Technical White Paper – [Unlock Nanoscale Printing]
