20*24in Ultra Fine 180 Mesh Aluminum Screens Precision Printing

Ultra-Fine 180 Mesh Aluminium Silk Screens for High-Detail Printing – Industrial-Grade screen printing aluminium frame Solutions

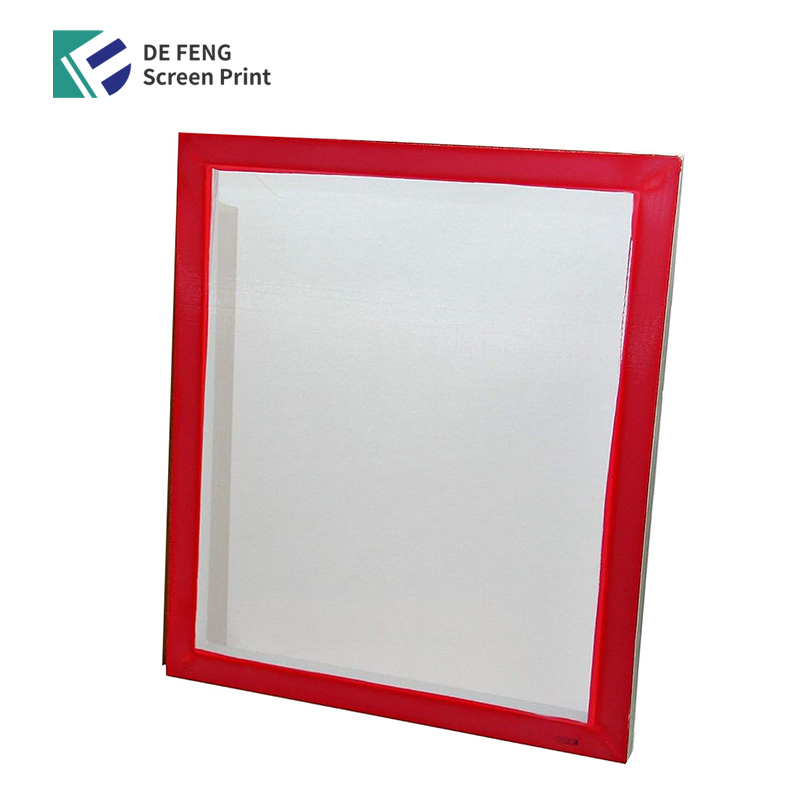

Transform intricate designs into flawless prints with our professional 20"x24" Pre-Stretched aluminium silk screen Printing Frames – engineered for demanding print shops prioritizing micron-level precision and long-term reliability.

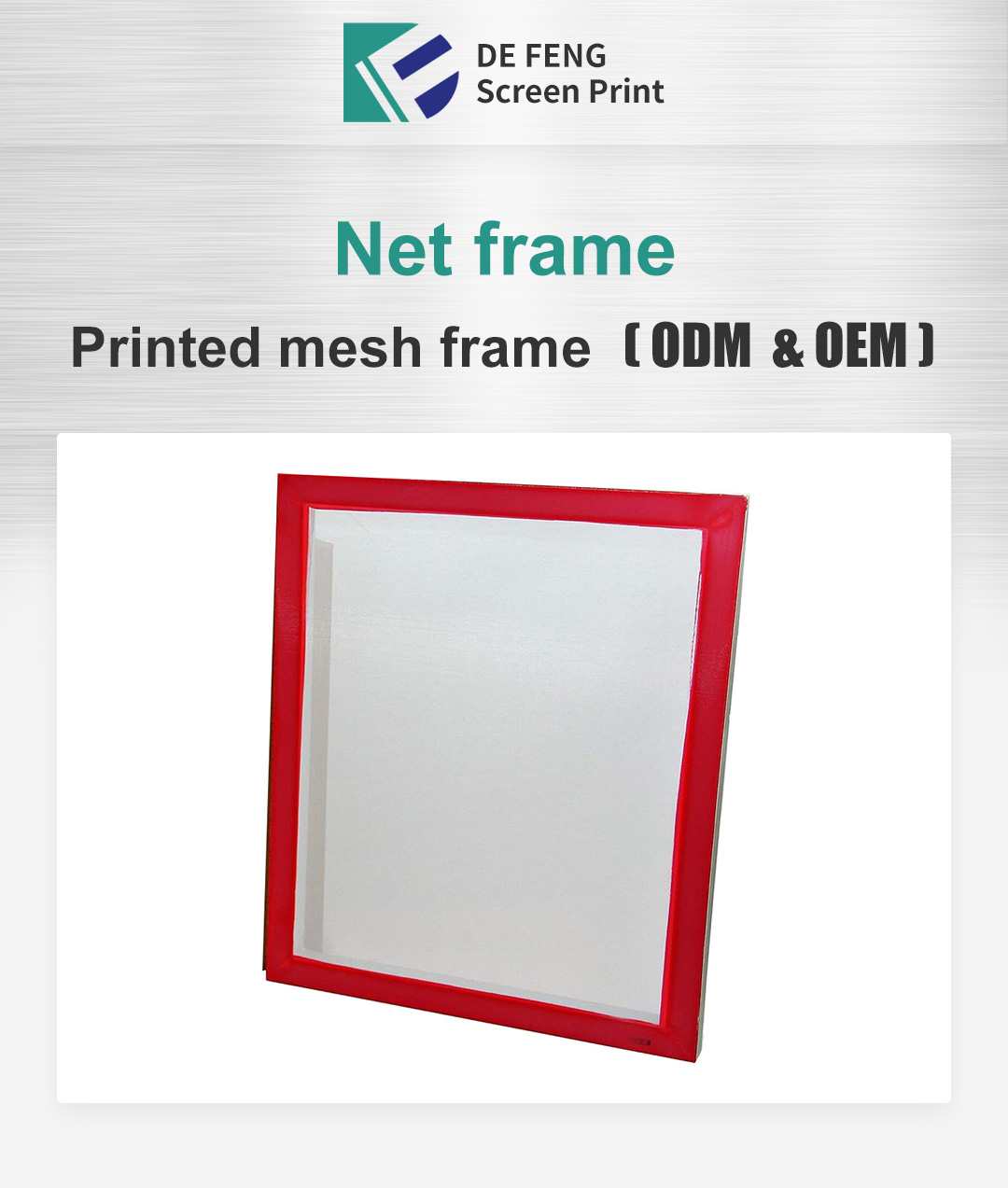

Why Top Print Studios Choose Our Printed Mesh Frames:
✅ 180TPI Detail Mastery
High-density 180 thread/inch white mesh achieves:
• 0.05mm line resolution for photorealistic halftones
• 58L/cm stochastic screening capability
• 35% open area balances ink flow and dot retention

✅ Military-Spec Aluminum Construction

• 1.37"x1.37" extruded tubing with stress-dispersing corners

• 5-stage anodized finish resists chemical corrosion

• 12° beveled edges prevent press interference

✅ Workshop-Ready Features
✔ Factory-prepped 20-24N/cm tension (±0.4N/cm variance)
✔ Diamond-cut grooves for tension meter compatibility
✔ Sandblasted mesh surface (Ra 3.2μm) enhances stencil adhesion

Technical Edge Over Competitors

Proven Applications
• Luxury fashion branding (≤0.1mm metallic ink detailing)
• Medical device labeling (ISO-compliant microtext)
• Automotive decal production (UV-resistant gradients)
• Consumer electronics overlays (conductive ink patterns)

Smart Production Features

• TensionLock™ Adhesive – Withstands acetone immersion for 40+ cleanings

• Color-Coded Corners – Quick mesh alignment during re-stretching

• PressFit™ Geometry – 0.2mm clearance tolerance for automatic press loading

Quality Validation Process
① X-ray weld inspection at frame joints
② 360° tension mapping via robotic sensors
③ 48hr salt spray testing (ASTM B117)
④ Live load testing to 1,200N

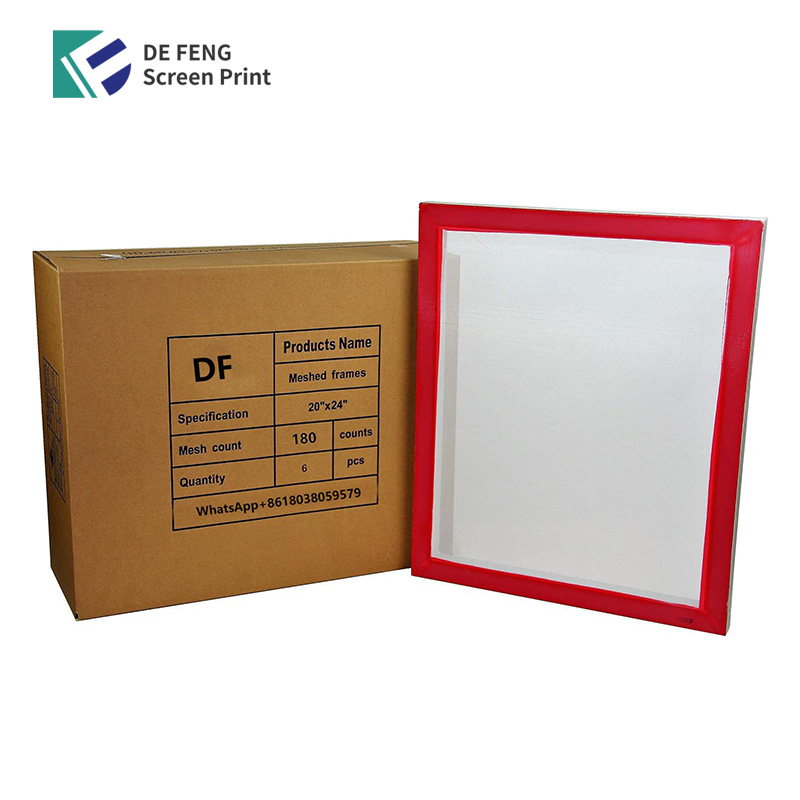

What’s Included
• 1× Ready-to-print aluminium silk screen
• Digital tension baseline certificate
• 5× Mesh protector films
• Multi-language setup guide (EN/ES/FR/DE)

“These frames cut our screen prep time by 65% while improving print consistency – a game-changer for boutique orders.”
– Marco R., Production Manager @PrintLab Italia
