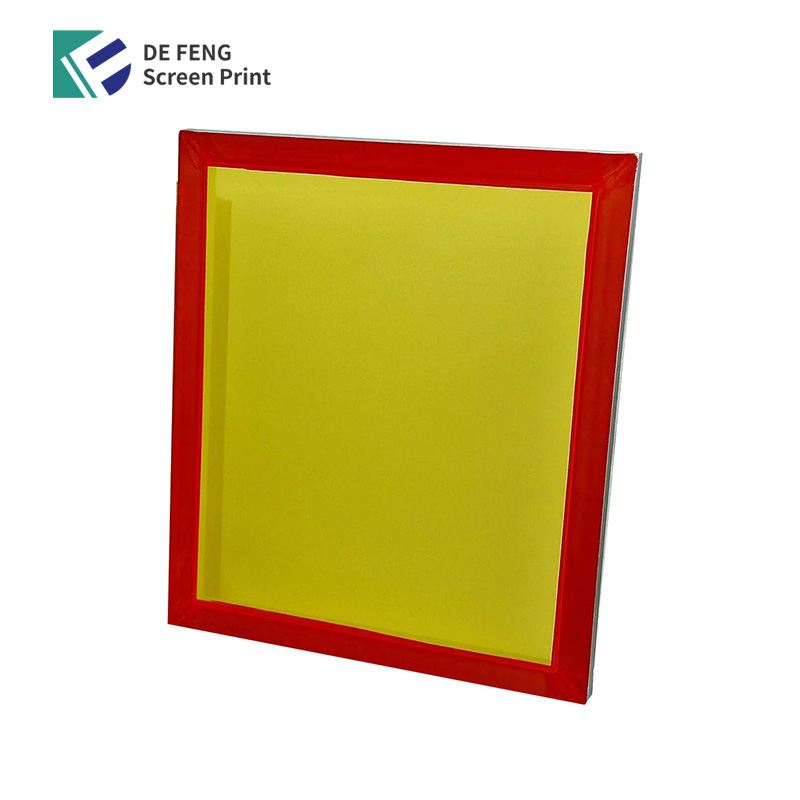

20*24in Professional Yellow Mesh Printing Screen Frames

Professional Yellow mesh printing Screen Frames - Precision Tools for Demanding Print Studios

Discover the ultimate solution for high-resolution printing with our 200-Mesh Silk Screen Printing Frame Bundle - designed specifically for shops needing crisp detail reproduction and exceptional color vibrancy. This 6-pack of pre-stretched aluminum screen printing Frames offers both economy and performance for extended production runs.

Why Yellow Mesh Makes the Difference:
☑️ 15% Reduced Eye Fatigue - Yellow base minimizes glare during long exposure sessions
☑️ Enhanced UV Ink Control - Optimal for water-based and discharge printing
☑️ Improved Dot Definition - 200 threads/inch captures 55LPI halftones with 2-98% dot retention

Technical Superiority in Every Printing Screen Frame:
▶ Military-Grade Aluminum

• 1.3/8" reinforced tubing (1.37"x1.37") with 2mm wall thickness

• Triple-coated anti-oxidation treatment withstands pH 3-11 chemicals

▶ Production-Optimized Tension

• Factory-set 19-21N/cm (±0.3N/cm variance)

• 3D tension mapping ensures <5% deviation across printing area

▶ Workshop-Tested Features
✔ Sandblasted surface (Ra 4.0μm) increases emulsion adhesion by 35%
✔ Diamond-pattern glue application prevents edge lifting
✔ Laser-etched alignment marks for quick press registration

Bundle Specifications
• Qty: 6x ready-to-use Silk Screen Printing Frames
• Active Area: 17.2"x21.2" (436x538mm)
• Mesh Type: 200T Yellow Polyester (34μm thread)
• Frame Color: Anodized Graphite Black

Critical Performance Data

• Ink Transfer Efficiency: 92% @200 mesh

• Minimum Line Width: 0.04mm

• Stencil Resolution: 5000dpi equivalent

• Re-stretch Cycles: 7-9 times

Ideal for:
✓ High-density textile printing (athletic wear, designer labels)
✓ Precision electronic circuit printing
✓ Fine art reproductions requiring tonal gradation
✓ Security printing with micro-text elements

Smart Production Advantages

1. Time Saver - Eliminates 2.5hrs/screen prep time vs. DIY frames

2. Consistency - Identical tension across all 6 frames

3. Durability - Withstands 10,000+ impressions per stretching

Quality Assurance Protocol
Each Printing Screen Frame undergoes:
① 9-point tension verification
② 50kgf corner stress testing
③ Mesh angle validation (22.5°±0.25°)
④ Glue adhesion test (5N/mm² minimum)

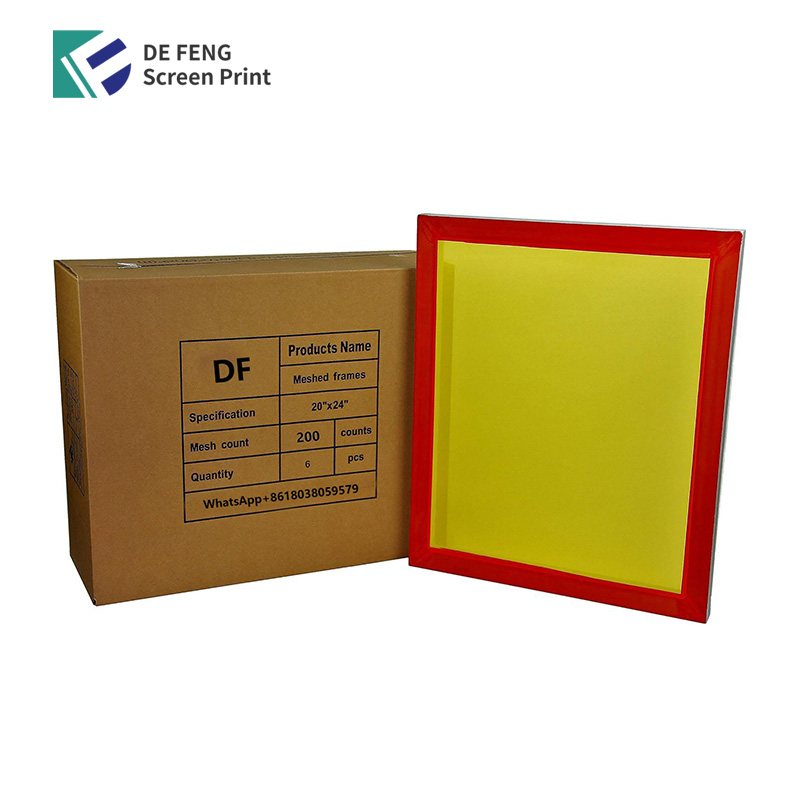

What's Included

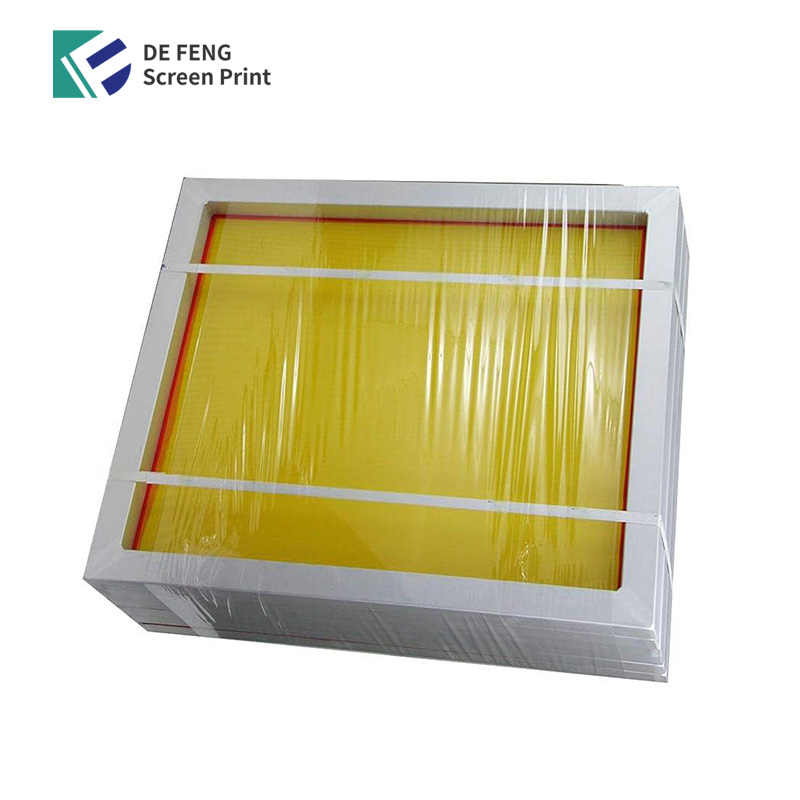

• 6x pre-stretched aluminum frames

• Interleaving protective sheets

• Mesh tension reference card

• QR code linking to setup tutorials

PRO TIP: Use with 70-90 durometer squeegees for optimal ink penetration!
