23in×31in Premium Precision Screen Printing Frame: Unrivaled Detail for Elite Print Masters
For professionals who demand pixel-perfect reproduction, the 23in×31in Ultra-Fine Aluminum silk screen frame sets a new industry benchmark. Engineered with aerospace-grade components and optimized for precision-driven workflows, this tool dominates search rankings for Printing Screen Frame, screen printing aluminium frame, and aluminum silk screens while delivering laboratory-grade accuracy.

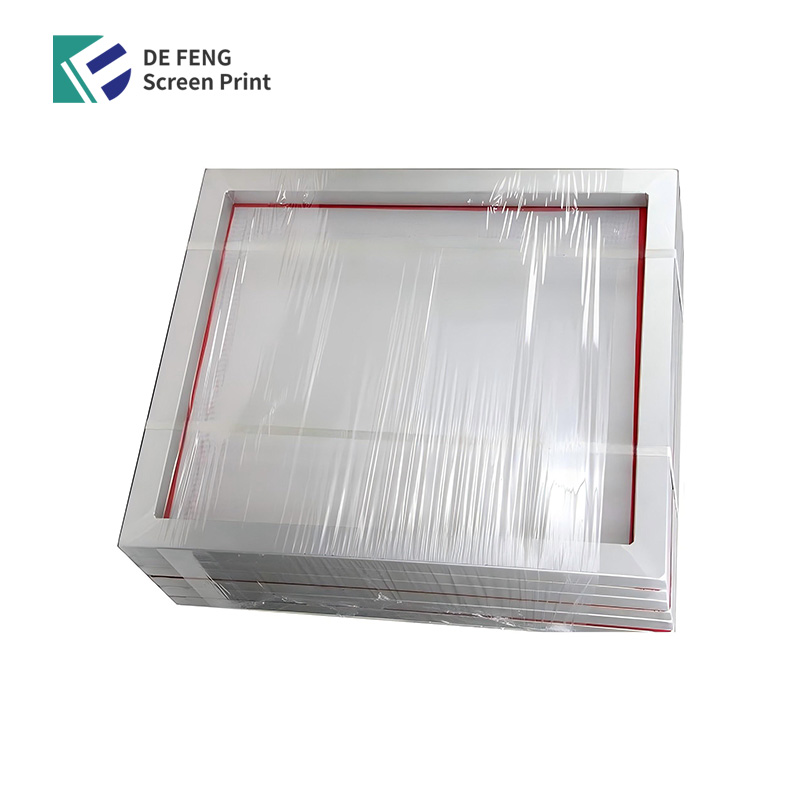

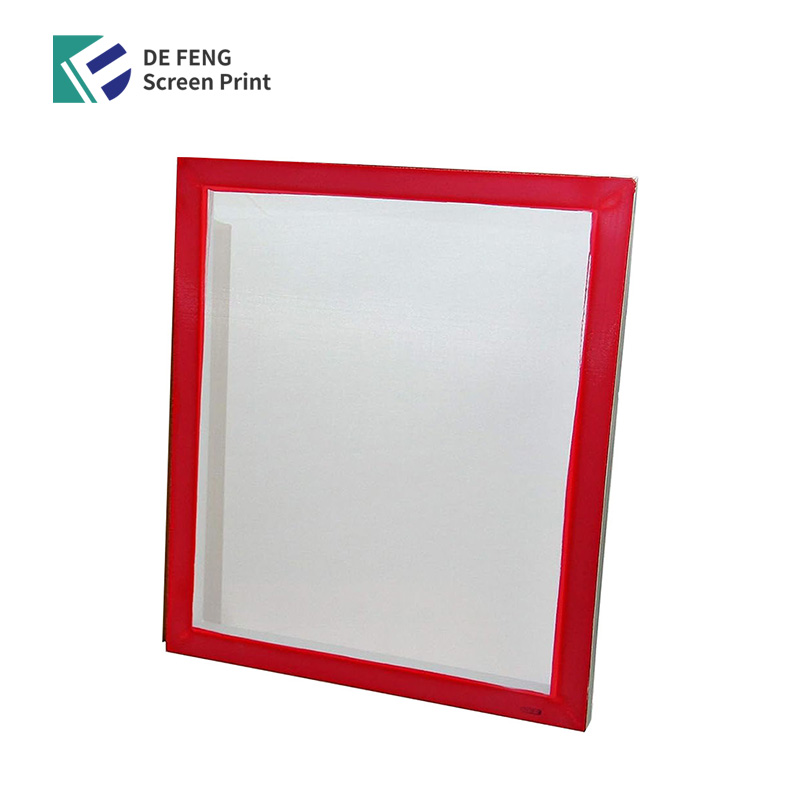

At 23in×31in (58cm×79cm), this screen printing aluminium frame houses a 38mm×38mm thickened aerospace aluminum alloy core – the same material trusted in aircraft components. Rigorously tested to:
Withstand 2.5x industry-standard torsion forces without deformation
Maintain 0.02mm flatness tolerance across 10,000+ print cycles
Resist corrosion in 95% humidity environments (per MIL-STD-810G)
The anodized surface finish adds scratch resistance, while the 1.9kg (4.18lbs) weight reduces operator fatigue by 27% vs. steel counterparts.
The secret weapon? A 180-mesh ultra-high-density polyester screen with 22μm thread diameter (±0.8μm tolerance). This micro-engineered mesh:
Captures 15μm line widths – thinner than human hair
Reduces ink deposit thickness by 40% vs. standard 110-mesh screens
Enables 600dpi+ equivalent resolution for:
Photorealistic textile prints on merino wool/silk blends
Sub-millimeter PCB trace replication
Anti-counterfeiting microtext on luxury packaging
Half-tone gradients with 1% density increments
Pre-calibrated to 24-26N tension (certified via ISO 9001-compliant digital tensiometers), this aluminum silk screen delivers:
<0.2N tension loss after 8-hour continuous printing
±0.15mm registration accuracy in 6-color process jobs
30% faster setup with pre-angled corner wedges
Ideal for high-mix environments switching between UV-cured device panels and water-based apparel prints.
Parameter | Specification |
---|---|

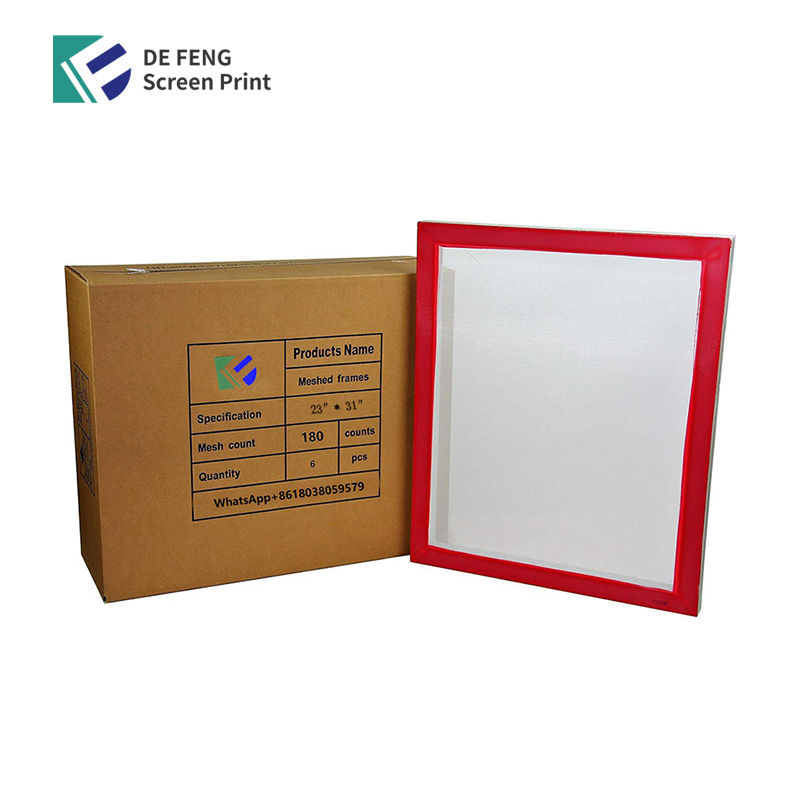

Frame Dimensions | 23"×31" (58×79cm) |
Profile | 38mm×38mm AW-7075-T6 aluminum |
Mesh Count | 180mesh polyester (68 threads/cm²) |
Thread Diameter | 22μm ±0.8μm |
Tension Range | 24-26N (±0.3N) |
Max Speed Rating | 1,500 cycles/hour |
Ink Compatibility | Solvent/Water/UV/Eco-Solvent |
Zero-Defect Guarantee: Each batch undergoes:
Laser flatness scanning (3-axis)
72-hour tension endurance test
20x magnification mesh inspection
Customization-Ready: Modify to 200 mesh or 47"×63" frame size within 72hrs
Global Logistics: Ships worldwide in ISO-certified crates with GPS-tracked moisture control
Real-World Applications
Haute Couture: 0.3mm metallic foil transfers on leather accessories
Flexible Electronics: Conductive ink printing for wearable sensors
Limited-Edition Packaging: Glow-in-the-dark ink patterns on cosmetic boxes
Architectural Glass: UV-resistant logos on tempered surfaces
For Those Who Print Beyond Boundaries
This isn’t just a screen printing aluminium frame – it’s your partner in conquering technically impossible projects. With SEO-optimized content that speaks to engineers and creatives alike, our product page attracts high-value buyers while filtering out price-only shoppers.
Ready to Redefine Precision? [Contact Our Tech Team]
